M-QFN16W.5
Open
 Cavity QFN

Back To  M-QFN    Lids    Sockets    Evaluation Kits    Assembly    Distributors    Home


M-QFN Open cavity (air cavity) packages for quick-to-market applications.
Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave.
Use for R&D, laboratory projects and pre-production where low volume, low cost is required.

Features to suit your specific packaging needs:
  • See our  Lids.
  • See All  Open Cavity Packages Available
  •


    M-QFN Open (Air) Cavity QFN
    N
    Leads
    P
    Pitch
    D/E
    Body
    D1/E2
    Die Pad
    NiPdAu
    Plating
    Spec
    Tray
    Qty
    Part Number PDF
    Outline
    Drawing
    Status
    16 0.5mm 3mm 1.4mm G6 100
    256
    490
    M-QFN16W.5-G6
    M-QFN16T.5-G6
    M-QFN16X.5-G6
    461660
    451664
    451669
    Tooled


    Drawings • CAD Documents
    Click link to Download File

    PDF

    DXF
    Outline

    DXF
    Bond  Diagram

    DXF
    PCB  Layout

    Solidworks
    easm
    Model
    Install Solidworks e-Drawings software.
    Required to view rotatable models:
    PC Version  •  Mac Version



    M-QFN16W.5 Open Cavity
    Click Images to Enlarge

    Click to Enlarge
    Perspective View
    16L 3x3mm
    Pitch 0.5mm
    NiPdAu G6
    Click to Enlarge

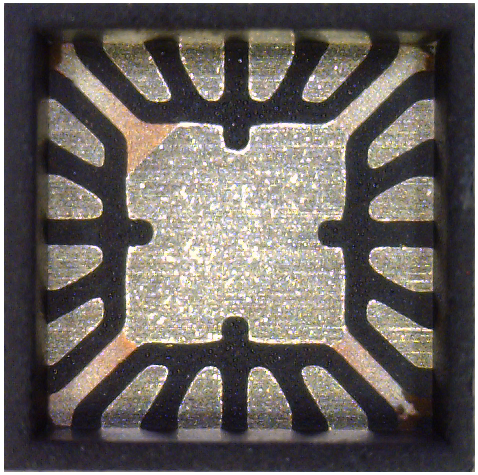

    Top Cavity
    16L 3x3mm
    Pitch 0.5mm
    NiPdAu G6
    Click to Enlarge
    Bottom View
    16L 3x3mm
    Pitch 0.5mm
    NiPdAu G6

    Construction:
  • Copper Lead Frame (C-194 F/H)
  • Plating: NiPdAu
  • G6 - Ni 0.50 ~ 2.00µm  • Pd 0.02 ~ 0.15µm  •  Au 0.003 ~ 0.015µm
  • Wall Thickness 0.175mm
  • Molding Compound: G770H / G700LA
  •

    Cavity Package Part Numbering System
    M - QFN 16 W .5 - G6
    Cavity Package   Model Leads Packaging Pitch (mm) Plating
    M = Molded Plastic
    Cu Leadframe (C-194F/H)
      QFN = Quad Row 16L
    3x3mm
    Standard:
    W = 2" Tray

    Optional:
    T = 4" Tray
    X = JEDEC Tray
    .5mm G6 NiPdAu Plating
    Ni 0.50 ~ 2.00µm
    Pd 0.02 ~ 0.15µm
    Au 0.003 ~ 0.015µm


    Drawing Numbering System
       4       5       16       6       0
    Package Pitch Code Plating Packaging
    4 = QFN
    Quad Sides
    5 = 0.5mm 16L
    3x3mm
    G6 NiPdAu Plating
    Ni 0.50 ~ 2.00µm
    Pd 0.02 ~ 0.15µm
    Au 0.003 ~ 0.015µm
    0 = 2" Waffle Tray (W)
    4 = 4" Waffle Tray (T)
    9 = JEDEC Tray (X)

    Flat Lids   •   Flat Covers
    Part Series B-LID3W-BLACK T-LID3W-BLACK T-LID3W-WHITE G-LID3W-GLASS EXT3W.8-BLACK
    Shape Flat Flat Flat Flat Cavity
    Height Extender
    Material Plastic BT Plastic BT Rogers RO4003C Glass Borosilicate Plastic BT
    Color Black Black White Clear Black
    D/E Size 3x3mm 3x3mm 3x3mm 3x3mm 3x3mm
    Thickness 0.3mm 0.2mm 0.2mm 0.7mm 0.8mm
    Attach Permanent Removable
    or
    Permanent
    Removable
    or
    Permanent
    Removable
    or
    Permanent
    Permanent
    Sealing
    Method
    LCA3000X
    B-Stage Preform
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    Adhesive Paste
    Top
    View
    Bottom
    View
    Rotatable
    Model
     B-LID  T-LID  T-LID  G-LID  EXT
    Install Solidworks e-Drawings software.
    Required to view rotatable models:
    PC Version  •  Mac Version


    Dome Lids   •   Cavity Covers   •   For Tall Die
    Part Series C-CAP3W-WHITE G-CAP3W-GLASS L-CAP3W-BLACK B-CAP3W-BLACK Z-CAP3W-ALUMINUM
    Shape Dome
    Cavity
    Dome
    Cavity
    Dome
    Cavity
    Dome
    Cavity
    Dome
    Cavity
    Material Ceramic
    Alumina 96
    Al2O3
    Glass
    Borosilicate
    LCP
    Liquid Crystal
    Polymer
    LCP
    Liquid Crystal
    Polymer
    Aluminum
    (Al)
    Color White Clear Black Black Aluminum
    D/E Size 3x3mm 3x3mm 3x3mm 3x3mm 3x3mm
    I.D.
    Ceiling
    Height
    0.6mm 0.6mm 0.6mm~
    2.0mm
    0.6mm~
    2.0mm
    1.2mm
    O.D.
    Outline
    Height
    1.0mm 1.1mm 1.0mm~
    2.5mm
    1.0mm~
    2.5mm
    1.6mm
    B-Stage
    Preform
    None None None Yes None
    Attach Removable
    or
    Permanent
    Removable
    or
    Permanent
    Removable
    or
    Permanent
    Permanent Removable
    or
    Permanent
    Sealing
    Method
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    LCA3000X
    B-Stage Preform
    Kapton Tape
    or Adhesive Paste
    Top
    View
    Bottom
    View
    Rotatable
    Model
      C-CAP   G-CAP   L-CAP   B-CAP   Z-CAP
    Install Solidworks e-Drawings software.
    Required to view rotatable models:
    PC Version  •  Mac Version
