M-QFN48W.4
Open Cavity QFN

Back To  M-QFN    Lids    Sockets    Evaluation Kits    Assembly    Distributors    Home


M-QFN Open cavity (air cavity) packages for quick-to-market applications.
Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave.
Use for R&D, laboratory projects and pre-production where low volume, low cost is required.

Features to suit your specific packaging needs:
  • See our  Lids.
  • See All  Open Cavity Packages Available
  •


    M-QFN48W.4-G5 Open (Air) Cavity QFN
    N
    Leads
    P
    Pitch
    D/E
    Body
    D1/E2
    Die Pad
    Plating
    Spec
    Qty
    M-QFN
    2" Tray
    Part Number PDF
    Outline
    Drawing
    Status
    48 0.4mm 6mm 4.4mm G5 25
    121
    490
    M-QFN48W.4-G5
    M-QFN48T.4-G5
    M-QFN48X.4-G5
    444850
    444854
    444859
    Tooled
    Drawings • CAD Documents
    Click link to Download File

    PDF

    DXF
    Outline

    DXF
    Bond  Diagram

    DXF
    PCB  Layout

    Solidworks
    eprt
    Model

    SAT 3D Model
    ACIS Spatial
    Install Solidworks e-Drawings software Version 10.
    Required to view rotatable models:
    PC Version  •  Mac Version




    Photo Examples M-QFN48W.4-G5 Open Cavity
    Click Photos to Enlarge

    Click to Enlarge

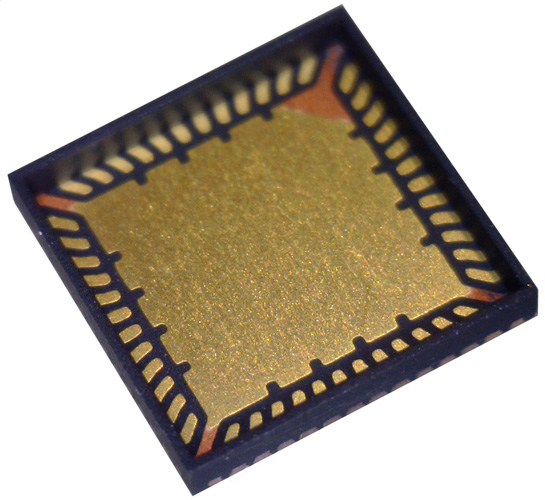

    Perspective View
    48L 6x6mm
    Pitch 0.4mm
    NiPdAu G5
    Click to Enlarge

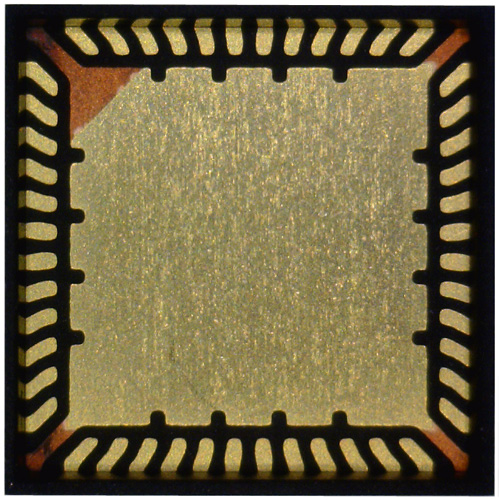

    Top Cavity
    48L 6x6mm
    Pitch 0.4mm
    NiPdAu G5
    Click to Enlarge

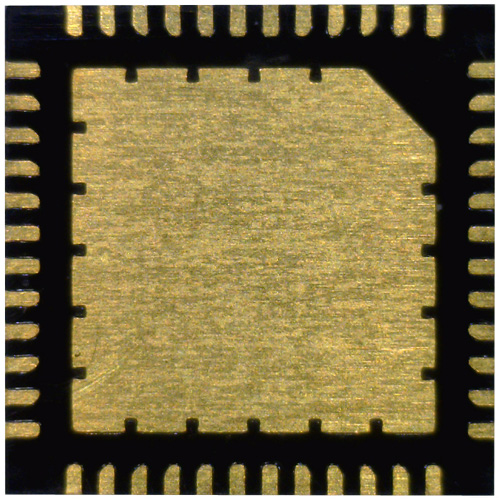

    Bottom View
    48L 6x6mm
    Pitch 0.4mm
    NiPdAu G5

    Construction:
  • Copper Lead Frame (C-194 F/H)
  • Plating: NiPdAu
  • G6 - Ni 0.50 ~ 2.00µm  • Pd 0.02 ~ 0.15µm  •  Au 0.003 ~ 0.015µm
  • G5 - Ni 1.27 ~ 4.57µm  •  Pd 0.15 ~ 0.51µm  •  Au 0.10 ~ 0.20µm
  •


    Mirror Semiconductor
    17595 Harvard Ave, Suite 509
    Irvine, CA 92614, USA
    Tel: 1-866-404-8800
    email to Info@MirrorSemi.com
