M-QFN48T.5-G3
Open
 Cavity QFN

Back To  M-QFN    Lids    Sockets    Evaluation Kits    Assembly    Distributors    Home


M-QFN Open cavity (air cavity) packages for quick-to-market applications.
Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave.
Use for R&D, laboratory projects and pre-production where low volume, low cost is required.

Features to suit your specific packaging needs:
  • See our  Lids.
  • See All  Open Cavity Packages Available
  •


    M-QFN Open (Air) Cavity QFN
    N
    Leads
    P
    Pitch
    D/E
    Body
    D1/E2
    Die Pad
    NiPdAu
    Plating
    Spec
    Tray
    Qty
    Part Number PDF
    Outline
    Drawing
    Status
    48 0.5mm 7mm 5.4mm G3 25
    81
    M-QFN48W.5-G3
    M-QFN48T.5-G3
    454830
    454834
    Open Tool


    Drawings • CAD Documents
    Click link to Download File

    PDF

    DWG
    Outline

    DXF
    Bond  Diagram

    DWG
    PCB  Layout

    Solidworks
    eprt
    Model

    SAT 3D Model
    ACIS Spatial
    Install Solidworks e-Drawings software.
    Required to view rotatable models:
    PC Version  •  Mac Version



    M-QFN48W.5-G6 (Wall 0.225mm) Open Cavity
    Click Images to Enlarge

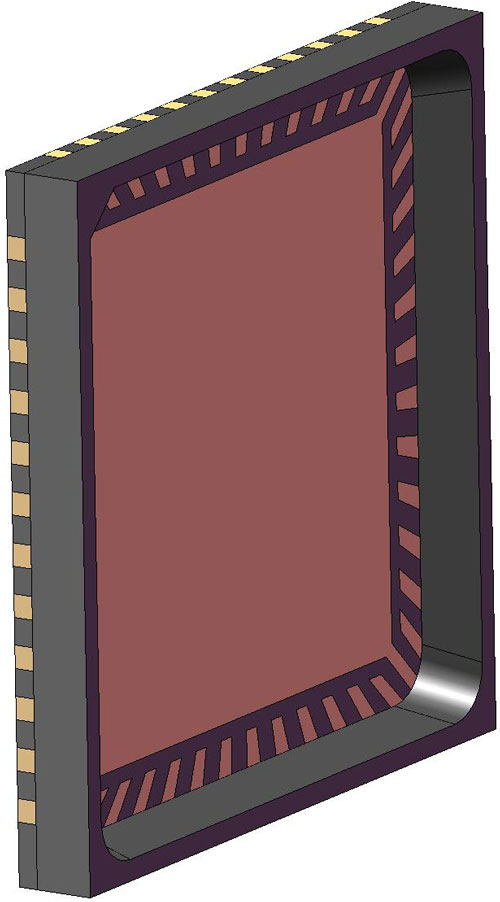

    Click to Enlarge
    Perspective View
    48L 7x7mm
    Pitch 0.5mm
    G6 Wall 0.225mm

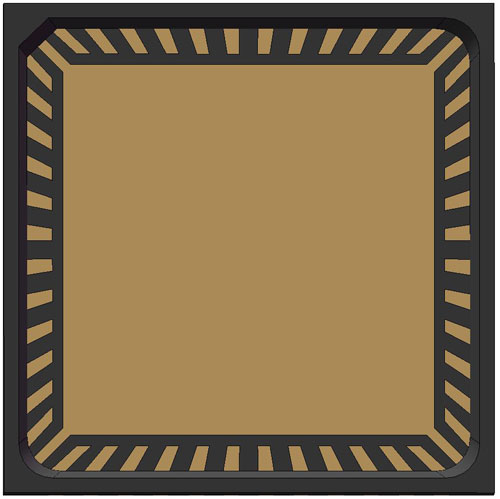

    Click to Enlarge
    Top Cavity
    48L 7x7mm
    Pitch 0.5mm
    G6 Wall 0.225mm

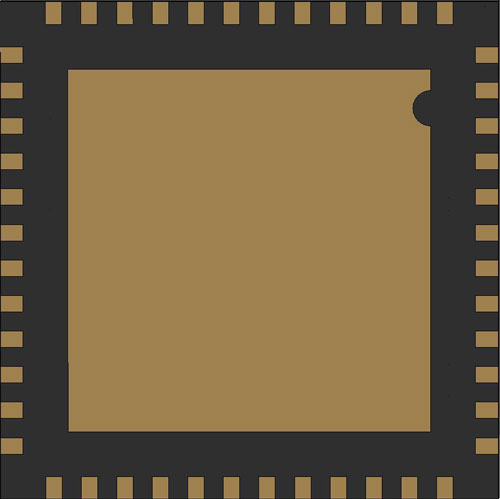

    Click to Enlarge
    Bottom View
    48L 7x7mm
    Pitch 0.5mm
    G6 Wall 0.225mm

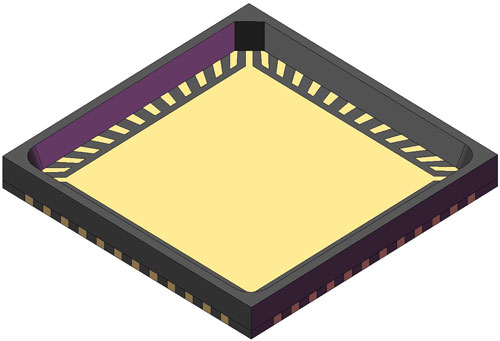

    Click to Enlarge
    Edge View
    48L 7x7mm
    Pitch 0.5mm
    G6 Wall 0.225mm

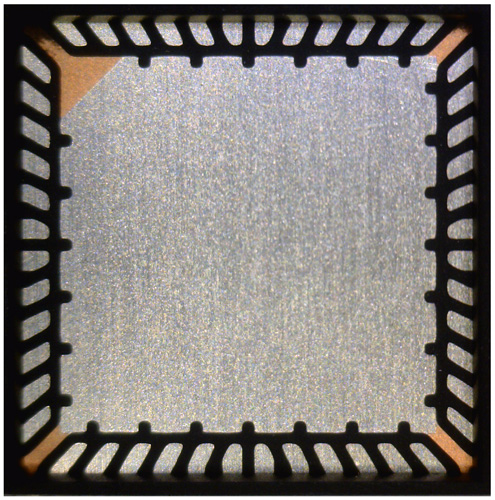

    Click to Enlarge
    Cavity View
    48L 7x7mm
    Pitch 0.5mm
    G6 Wall 0.225mm

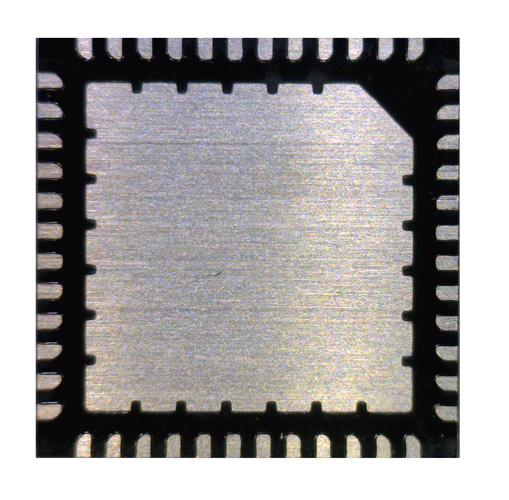

    Click to Enlarge
    Bottom View
    48L 7x7mm
    Pitch 0.5mm
    G6 Wall 0.225mm

    Construction:
  • Copper Lead Frame (C-194 F/H)
  • Plating: NiAu
  • G3 - Ni 2.50 ~ 7.6µm  • Au 1.0 ~ 2.0µm
  • Wall Thickness 0.225mm
  •

    Cavity Package Part Numbering System
    M - QFN 48 T .5 - G3
    Cavity Package   Model Leads Packaging Pitch (mm) Plating
    M = Molded Plastic
    Cu Leadframe (C-194F/H)
      QFN = Quad Row 48L
    7x7mm
    Standard:
    W = 2" Tray
    T = 4" Tray
    .5mm G3 NiAu Plating
    Ni 2.50 ~ 7.6µm
    Au 1.0 ~ 2.0µm


    Drawing Numbering System
       4       5       48       3       4
    Package Pitch Pins Plating Packaging
    4 = QFN
    Quad Sides
    5 = 0.5mm 48L
    7x7mm
    G3 NiAu Plating
    Ni 2.50 ~ 7.6µm
    Au 1.0 ~ 2.0µm
    0 = 2" Waffle Tray (W)
    4 = 4" Waffle Tray (T)

    Flat Lids   •   Flat Covers
    Part Series B-LID7W-BLACK T-LID7W-BLACK T-LID7W-WHITE G-LID7W-GLASS
    Shape Flat Flat Flat Flat
    Material Plastic BT Plastic BT Rogers RO4003C Glass Borosilicate
    Color Black Black White Clear
    D/E Size 7x7mm 7x7mm 7x7mm 7x7mm
    Thickness 0.3mm 0.2mm 0.2mm 0.7mm
    Attach Permanent Removable
    or
    Permanent
    Removable
    or
    Permanent
    Removable
    or
    Permanent
    Sealing
    Method
    LCA3000X
    B-Stage Preform
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    Top
    View
    Bottom
    View
    Rotatable
    Model
     B-LID  T-LID  T-LID  G-LID
    Install Solidworks e-Drawings software.
    Required to view rotatable models:
    PC Version  •  Mac Version


    Dome Lids   •   Cavity Covers   •   For Tall Die
    Part Series G-CAP7W-GLASS L-CAP7T1.3-BLACK B-CAP7T1.3K-BLACK
    Shape Dome
    Cavity
    Dome
    Cavity
    Dome
    Cavity
    Material Glass
    Borosilicate
    LCP
    Liquid Crystal
    Polymer
    LCP
    Liquid Crystal
    Polymer
    Color Clear Black Black
    D/E Size 7x7mm 7x7mm 7x7mm
    I.D.
    Ceiling
    Height
    0.6mm 0.6mm~
    2.0mm
    0.6mm~
    2.0mm
    O.D.
    Outline
    Height
    1.1mm 1.0mm~
    2.5mm
    1.0mm~
    2.5mm
    B-Stage
    Preform
    None None Yes
    Attach Removable
    or
    Permanent
    Removable
    or
    Permanent
    Permanent
    Sealing
    Method
    Kapton Tape
    or Adhesive Paste
    Kapton Tape
    or Adhesive Paste
    LCA3000X
    B-Stage Preform
    Top
    View
    Bottom
    View
    Rotatable
    Model
      G-CAP   L-CAP   B-CAP
    Install Solidworks e-Drawings software.
    Required to view rotatable models:
    PC Version  •  Mac Version
