M-SO14M1.27
Open Cavity 14L-SOIC

Back To  M-QFN    Lids    Sockets    Evaluation Kits    Assembly    Distributors    Home


M-QFN Open cavity (air cavity) packages for quick-to-market applications.
Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave.
Use for R&D, laboratory projects and pre-production where low volume, low cost is required.

Features to suit your specific packaging needs:
  • See our  Lids.
  • See All  Open Cavity Packages Available
    •


    M-SO14M1.27 Open (Air) Cavity 14L SOIC
    N
    Leads    		 P
    Pitch    		 D/E
    Body    		 D1/E2
    Die Pad    		 Plating
    Spec    		 Tube
    Qty    		 Part Number PDF
    Outline
    Drawing    		 Status
    14 1.27mm 3.9x8.75mm 2.5X1.9mm G3 20 M-SO14M1.27-G3 120114 Tooled


    Drawings • CAD Documents
    Click link to Download File

    PDF
    Solidworks
    easm
    Model
    Install Solidworks e-Drawings software.
    Required to view rotatable models:         PC Version  •  Mac Version



    M-SO14M1.27-G3 Open Cavity
    Click Images to Enlarge

    Click to Enlarge

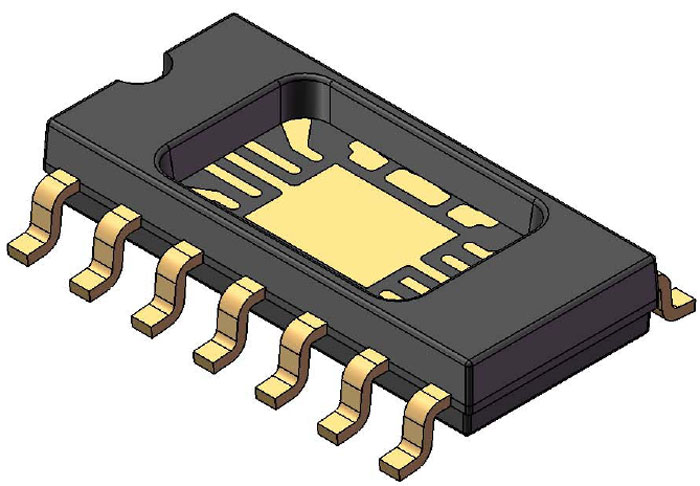

    Top
    Cavity View
    14L SOIC
    Pitch 1.27mm    		 Click to Enlarge

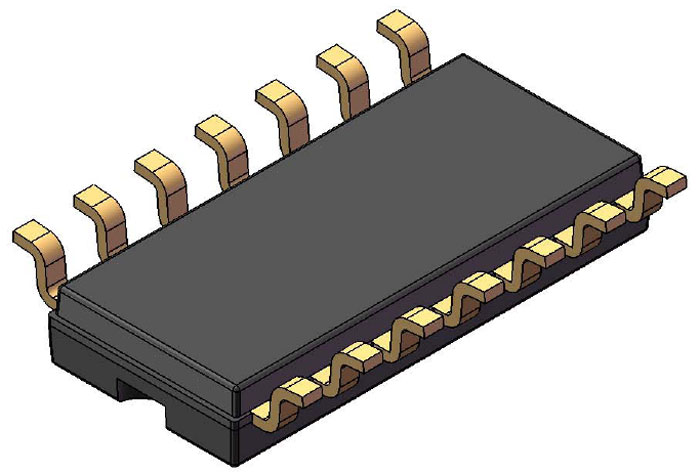

    Bottom View
    14L SOIC
    Pitch 1.27mm

    Construction:
  • Copper Lead Frame (A-194 F/H)
  • G3 - Ni 2.5 ~ 7.9µm  • Au 1.27µm
  • Molding Compound: Semiconductor Grade
    		•


    Cavity Package Part Numbering System
    M - SO 14 M 1.27 - G3
    Cavity Package   Model Leads Packaging Pitch (mm) Plating
    M = Molded Plastic
    Cu Leadframe (A-194F/H)    		   SOIC
    Small Outline Package    		 14L
    3.9 x 8.75mm
    Cav 2.5 x 1.9mm    		 Standard:
    M = Tube    		 1.27mm G3 NiAu Plating

    Flat Lids   •   Flat Covers
    Part Series B-LID-SO14-BLACK
    Shape Flat
    Material Plastic
    Color Black
    Size 3.9x7.62mm
    Thickness 0.50mm
    Attach Permanent
    Sealing
    Method    		 LCA3000X
    B-Stage Preform
    Top
    View
    Bottom
    View
    Rotatable
    Model    		  M-LID-SO14-BLACK
    Install Solidworks e-Drawings software.
    Required to view rotatable models:         PC Version  •  Mac Version
