M-TO220
Open Cavity 3L

Back To  M-QFN    Lids    Sockets    Evaluation Kits    Assembly    Distributors    Home


Open cavity (air cavity) packages for quick-to-market applications.
Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave.
Use for R&D, laboratory projects and pre-production where low volume, low cost is required.

Features to suit your specific packaging needs:
  • See our  Lids.
  • See All  Open Cavity Packages Available
    •


    M-TO220 Cavity 3L Power Package
    N
    Leads    		 P
    Pitch    		 D/E
    Body    		 D1/E2
    Die Pad    		 Plating
    Spec    		 Tube
    Qty    		 Part Number PDF
    Outline
    Drawing    		 Status
    3 2.53mm 8.9 x 10.2mm 8.6 x 4.5mm G3 TBA M-TO220-G3
    Ni-Au Gold Die Pad
    Standard    		 122203 Tooled


    Drawings • CAD Documents
    Click link to Download File

    M-TO220-G3
    Solidworks
    easm Model
    Install Solidworks e-Drawings software.
    Required to view rotatable models:         Download



    M-TO220-G3 Open Cavity
    Click Images to Enlarge

    Click to Enlarge

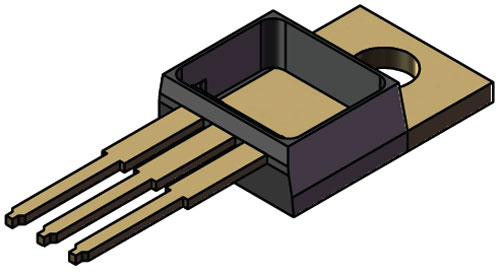

    M-TO220-G3
    3L Power Package
    Pitch 2.54mm    		 Click to Enlarge

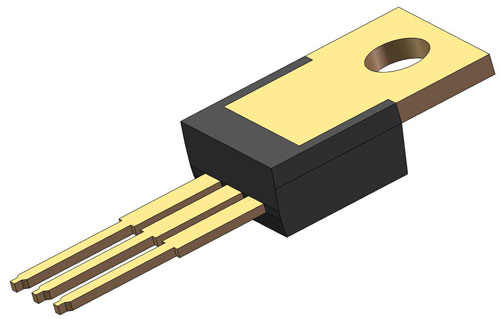

    Bottom View
    3L Power Package
    Pitch 2.54mm

    Construction:
  • Copper Lead Frame (A-194 F/H)
  • G3 - Ni 2.5 ~ 7.6µm  • Au 0.5~0.76µm
  • Molding Compound: Semiconductor Grade
    		•


    Cavity Package Part Numbering System
    M - TO 220   - G3
    Cavity Package   Model JEDEC Nbr Packaging   Plating
    M = Molded Plastic
    Cu Leadframe (A-194F/H)    		   TO
    Power Package    		 3L
    8.4x4.5mm
    Die Pad    		 Blank = Bulk
    Standard

    M = Tube    		   G3 NiAu Plating

    Optional Flat Lids   •   Flat Covers
    Part Series T-LID-TO220-BLACK
    Shape Flat
    Material BT Organic
    Color Black
    D/E Size ~9.5x8.5mm
    Thickness 0.20mm
    Attach Customer Provided Adhesive
    Top
    View
    Bottom
    View
    Rotatable
    Model    		  T-LID-TO220-BLACK
    Install Solidworks e-Drawings software.
    Required to view rotatable models:         Download
