S-QFN24W.5
Flat Cavity QFN

Back To  M-QFN    Lids    Sockets    Evaluation Kits    Assembly    Distributors    Home


S-QFN flat Open cavity (air cavity) packages for quick-to-market applications.
Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave.
Use for R&D, laboratory projects and pre-production where low volume, low cost is required.

Features to suit your specific packaging needs:
  • See our  Lids.
  • See All  Open Cavity Packages Available
    •


    S-QFN Open (Air) Cavity QFN
    N
    Leads    		 P
    Pitch    		 D/E
    Body    		 D1/E2
    Die Pad    		 Plating
    Spec    		 Tray
    Qty    		 Part Number PDF
    Outline
    Drawing    		 Status
    24 0.5mm 4mm 2.0mm G1
    G2    		 64
    64    		 S-QFN24W.5-G1
    S-QFN24W.5-G2    		 452412 Tooled


    Drawings • CAD Documents
    Click link to Download File

    PDF
    DWG
    Outline
    Solidworks
    eprt
    Model
    SAT 3D Model
    ACIS Spatial
    Install Solidworks e-Drawings software.
    Required to view rotatable models:         Download



    S-QFN24W.5 Flat Open Cavity
    Click Images to Enlarge

    Click to Enlarge

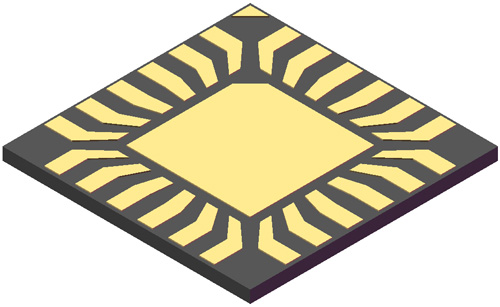

    Perspective View
    24L 4x4mm
    Pitch 0.5mm    		 Click to Enlarge

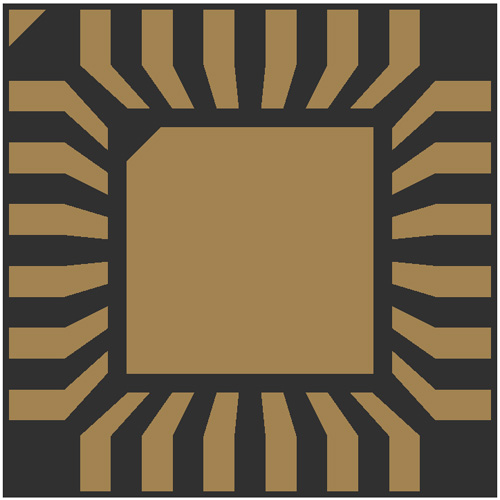

    Top Cavity
    24L 4x4mm
    Pitch 0.5mm    		 Click to Enlarge

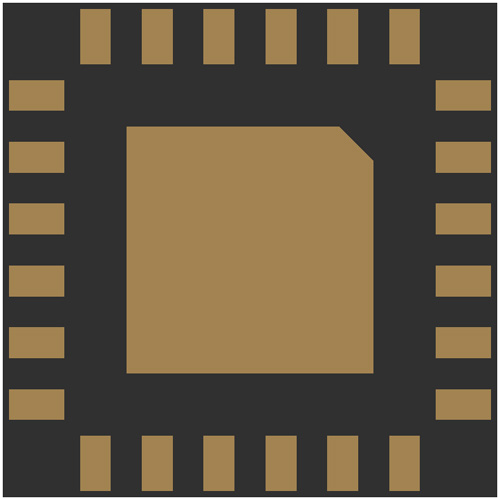

    Bottom View
    24L 4x4mm
    Pitch 0.5mm
    Click to Enlarge

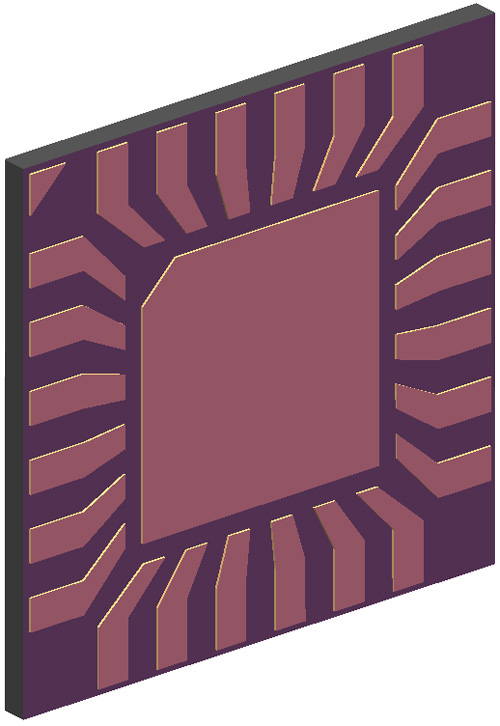

    Edge View
    24L 4x4mm
    Pitch 0.5mm    		 Click to Enlarge
    Cavity View
    24L 4x4mm
    Pitch 0.5mm    		 Click to Enlarge

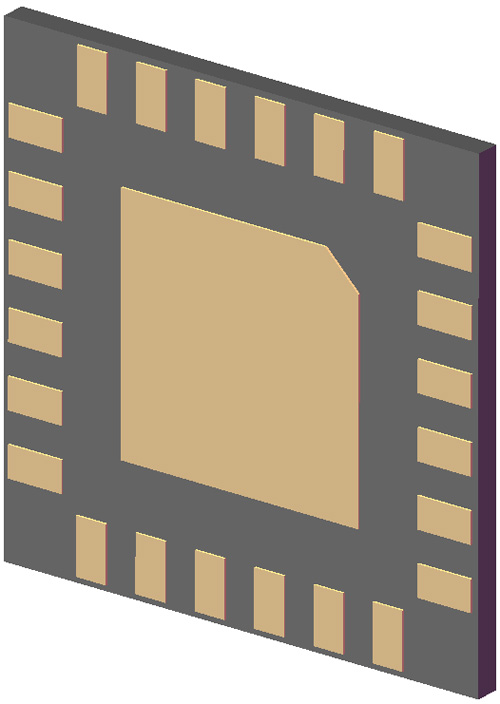

    Bottom View
    24L 4x4mm
    Pitch 0.5mm

    Construction:
  • BT or Rogers RO4003C
  • Plating: NiAu or NiPdAu
  • G1 (Top Die Side) - Ni 3.8µm  •  Au 1.3µm
  • G1 (Bottom Side) - Ni 3.8µm  •  Au 0.13µm
  • G2 Both Sides - Ni 3.8µm  • Pd 1.38µm  •  Au 0.13µm
  • Wall Thickness: None
  • Molding Compound: None
    		•


    Cavity Package Part Numbering System
    S - QFN 24 W .5 - G1
    Cavity Package   Model Leads Packaging Pitch (mm) Plating
    S = Flat QFN
    		   QFN = Quad Row 24L
    4x4mm    		 Standard:
    W = 2" Tray

    Optional:
    T = 4" Tray
    X = JEDEC Tray
    		 .5mm G1
    G2


    Drawing Numbering System
       4       5       24       1       2
    Package Pitch Pins Plating Packaging
    4 = QFN
    Quad Sides    		 5 = 0.5mm 24L
    4x4mm    		 G1
    G2         		0 = 2" Waffle Tray (W)
    4 = 4" Waffle Tray (T)
    9 = JEDEC Tray (X)
