M-QFN40W.4
Open Cavity QFN

Back To  M-QFN    Lids    Sockets    Evaluation Kits    Assembly    Distributors    Home


M-QFN Open cavity (air cavity) packages for quick-to-market applications.
Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave.
Use for R&D, laboratory projects and pre-production where low volume, low cost is required.

Features to suit your specific packaging needs:
  • See our  Lids.
  • See All  Open Cavity Packages Available
  •


    M-QFN40W.4-G5 Open (Air) Cavity QFN
    N
    Leads
    P
    Pitch
    D/E
    Body
    D1/E2
    Die Pad
    Plating
    Spec
    Qty
    M-QFN
    2" Tray
    Part Number PDF
    Outline
    Drawing
    Rotatable
    360°
    Solidworks
    Model
    Status
    40 0.4mm 5mm 3.4mm G5 36 M-QFN40W.4-G5 444050 Model Tooled
    Install Solidworks e-Drawings software Version 10.
    Required to view rotatable models:
    PC Version  •  Mac Version

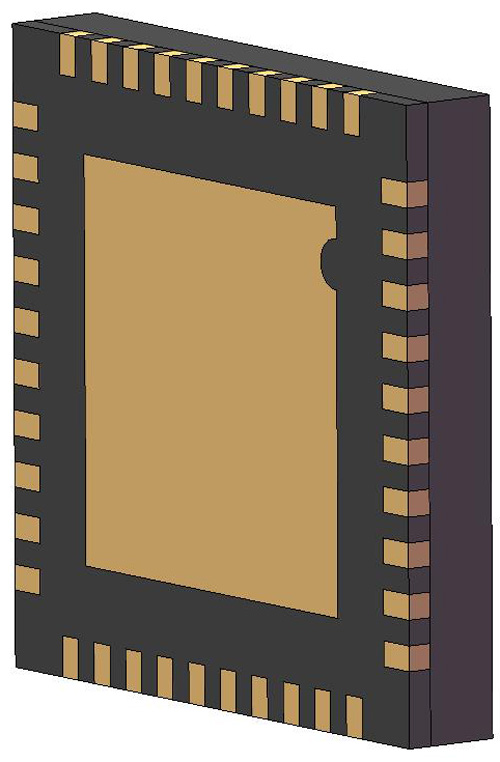

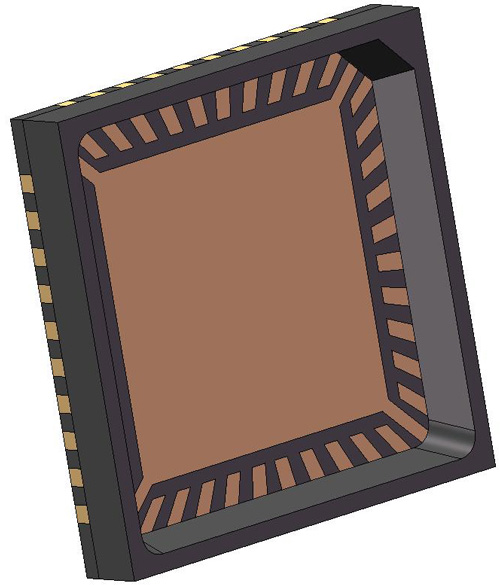

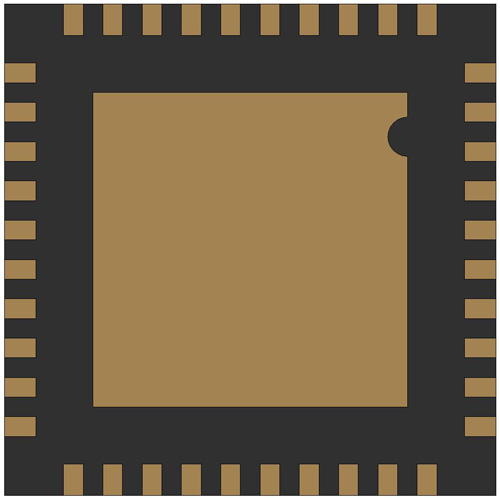

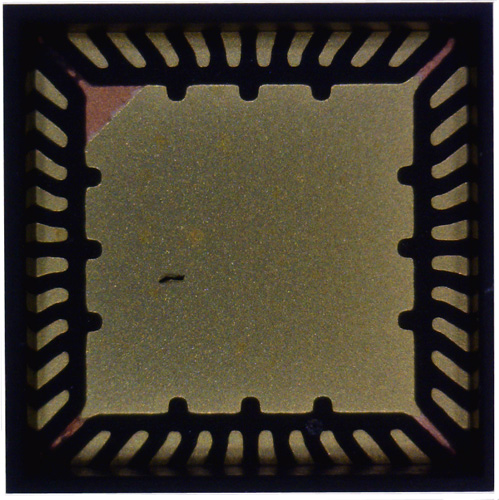

    Photo Examples M-QFN40W.4-G5 Open Cavity
    Click Photos to Enlarge

    Click to Enlarge

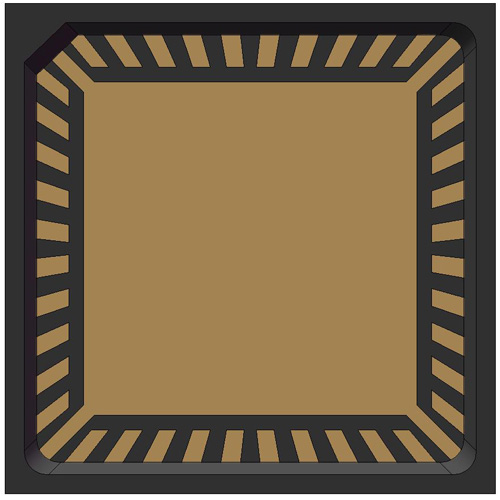

    Top Cavity
    40L 5x5mm
    Pitch 0.4mm
    NiPdAu G5

    Construction:
  • Copper Lead Frame (C-194 F/H)
  • Plating: NiPdAu
  • G6 - Ni 0.50 ~ 2.00µm  • Pd 0.02 ~ 0.15µm  •  Au 0.003 ~ 0.015µm
  • G5 - Ni 1.27 ~ 4.57µm  •  Pd 0.15 ~ 0.51µm  •  Au 0.10 ~ 0.20µm
  •


    Mirror Semiconductor
    17595 Harvard Ave, Suite 509
    Irvine, CA 92614, USA
    Tel: 1-866-404-8800
    email to Info@MirrorSemi.com


    Top of Page

    Back to Products   Home

    M-QFN have matching footprints to OmPP and OCPP and Open-Pak OCP DFN3X3-08-OP-01-B, DFN3X3-10-OP-01-B, MLP3X3-12-OP-01-B, MLP3X3-16-OP-01-B, MLP4X4-12-OP-01-B, MLP4X4-16-OP-01-B, MLP4X4-20-OP-01-B, MLP4X4-24-OP-01-B, MLP5X5-16-OP-01-B, MLP5X5-16-OP-02-B, MLP5X5-20-OP-01-B, MLP5X5-24-OP-01-B, MLP5X5-28-OP-01-B, MLP5X5-32-OP-01-B, MLP6X6-24-OP-01-B, MLP6X6-28-OP-01-B, MLP6X6-36-OP-01-B, MLP6X6-40-OP-01-B, MLP7X7-28-OP-01-B, MLP7X7-32-OP-01-B, MLP7X7-44-OP-01-B, MLP7X7-48-OP-02-B, MLP8X8-28-OP-01-B, MLP8X8-32-OP-01-B, MLP8X8-52-OP-01-B, MLP8X8-56-OP-01-B, MLP9X9-44-OP-01-B, MLP9X9-64-OP-01-B, MLP12X12-80-OP-01-B, MLP12X12-100-OP-01-B, CL-MLP3X3-15-01, CL-MLP4X4-15-01, CL-MLP5X5-15-02, CL-MLP5X5-15-01, CL-MLP5X5-15-02, CL-MLP6X6-15-01, CL-MLP7X7-15-01, CL-MLP8X8-15-01, CL-MLP9X9-15-01, CL-MLP12X12-15-01, OCP_QFN_3X3_12A , OCP_QFN_3X3_16A , OCP_QFN_4X4_12A , OCP_QFN_4X4_16A , OCP_QFN_4X4_20A , OCP_QFN_4X4_24A , OCP_QFN_5X5_16A , OCP_QFN_5X5_20A , OCP_QFN_5X5_24A , OCP_QFN_5X5_28A , OCP_QFN_5X5_32A , OCP_QFN_6X6_24A , OCP_QFN_6X6_36A , OCP_QFN_6X6_40A , OCP_QFN_7X7_28A , OCP_QFN_7X7_32A , OCP_QFN_7X7_44A , OCP_QFN_7X7_48A , OCP_QFN_8X8_28A , OCP_QFN_8X8_32A , OCP_QFN_8X8_52A , OCP_QFN_8X8_56A , OCP_QFN_9X9_64A , OCP_QFN_12X12_100A , OCP_QFN_12X12_80A ,LQFP10X10-44OP-01-B , LQFP10X10-52OP-01-B , LQFP10X10-64OP-01-B , LQFP10X10-64OP-01 , OCP_LQFP44A , OCP_LQFP64A , OCP_SOIC_150_16A , OCP_SOIC_150_8A , OCP_SOIC_300_16B , OCP_SOIC_300_20A , OCP_SOIC_300_24A , OCP_SOIC_300_28A, OPC_SOIC16A , OPC_SOIC16B , OPC_SOIC20A , OPC_SOIC24A, OPC_SOIC28A , OPC_SOIC8A , SOIC016-OP-01 , SOIC016-OP-02 , SOIC020-OP-01 , SOIC024-OP-01 , SOIC028A_OP_01, SOIC08-OP-01 , OmPP, QP-QFN16-3mm-0.5mm , QP-QFN16-4mm-0.65mm , QP-QFN20-4mm-0.5mm , QP-QFN20-5mm-0.65mm , QP-QFN24-4mm-0.5mm , QP-QFN28-4mm-0.4mm , QP-QFN28-5mm-0.5mm , QP-QFN28-6mm-0.65mm , QP-QFN32-5mm-0.5mm , QP-QFN40-6mm-0.5mm , QP-QFN48-6mm-0.4mm , QP-QFN48-7mm-0.5mm , QP-QFN56-8mm-0.5mm , QP-QFN64-9mm-0.5mm , QP-QFN72-10mm-0.5mm , QP-QFN8-3mm-0.65mm , QP-QFN88-10mm-0.4mm , QP-QFN100-12mm-0.4mm , QFN5X5-2801 , QFN5X5-3201 , QFN7X7-4401 , QFN7X7-4801 , QFN8X8-5201 , QFN8X8-5601 , QFN9X9-6401 , POQ-S-0303-12-B , POQ-S-0303-16-B , POQ-S-0303-8-C , POQ-S-0404-16-C , POQ-S-0404-20-B , POQ-S-0404-24-B , POQ-S-0505-32-B , POQ-S-0505-40-A , POQ-S-0606-40-B , POQ-S-0606-48-A POQ-S-0707-48-B , POQ-S-0808-56-B , POQ-S-0909-64-B , POQ-S-1010-72-B , POQ-S-1212-80-B ,
