Open Cavity
Wire Bonding Examples

 More Products    Lids    Sockets    Evaluation Kits    Chip Carriers    Assembly    Distributors    Home


M-QFN Open cavity (air cavity) packages for quick-to-market applications.
Excellent for fabless semiconductor prototype, probing, MEMS, RF-Microwave.
Use for R&D, laboratory projects and pre-production where low volume, low cost is required.

  • Wire Bonding Temperature: 180°C Max

    • Features to suit your specific packaging needs:
  • See our  Lids.
  • See All  Open Cavity Packages Available
    		•

    Wire Bonding Examples M-QFN Open Cavity
    Click Photos to Enlarge

    Top Cavity View - Click to Enlarge
    8L 3x3mm
    Pitch 0.65mm

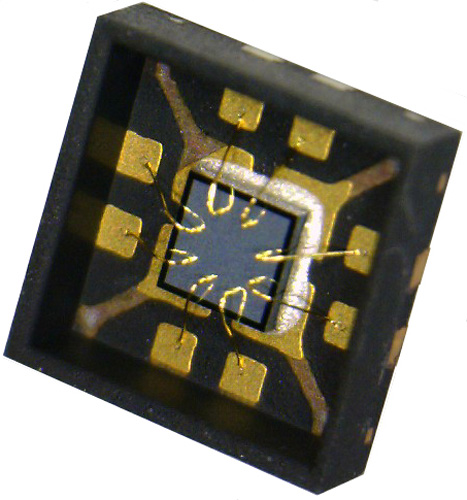

    NiPdAu G5    		 Top Cavity View - Click to Enlarge
    8L 3x3mm
    Pitch 0.65mm
    NiPdAu G5

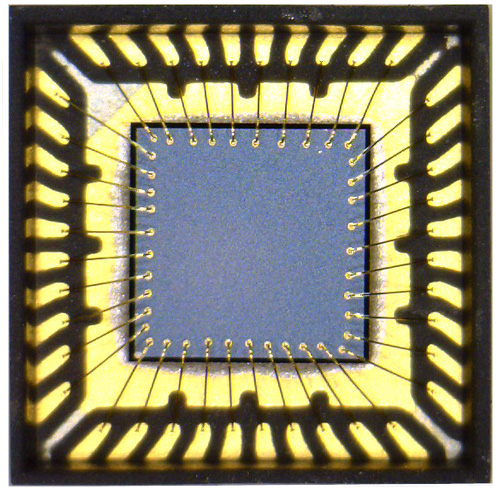

    Loop Height    		 Top Cavity - Click to Enlarge
    40L 5x5mm
    Pitch 0.4mm
    NiPdAu G5

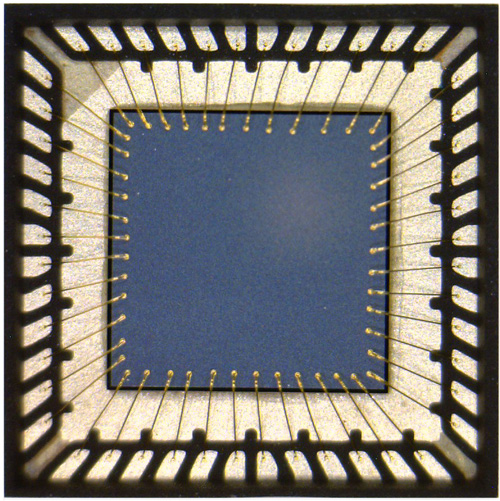

    Top Cavity - Click to Enlarge
    48L 7x7mm
    Pitch 0.5mm

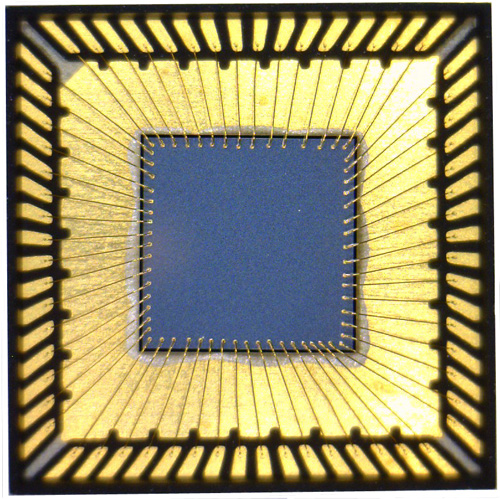

    NiPdAu G6    		 Top Cavity View - Click to Enlarge
    64L 9x9mm
    Pitch 0.5mm

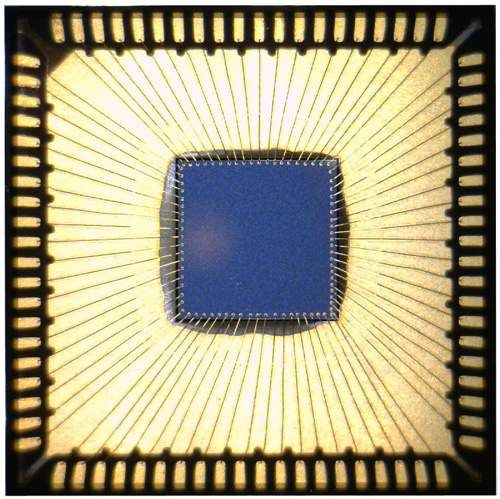

    NiPdAu G5    		 Top Cavity - Click to Enlarge
    80L 12x12mm
    Pitch 0.5mm
    NiPdAu G5

    Construction:
  • Copper Lead Frame (C-194 F/H)
  • Plating: NiPdAu
  • G5 - Ni 1.27 ~ 4.57µm  •  Pd 0.15 ~ 0.51µm  •  Au 0.10 ~ 0.20µm
  • G6 - Ni 0.50 ~ 2.00µm  • Pd 0.02 ~ 0.15µm  •  Au 0.003 ~ 0.015µm
  • G7 - Ni 0.50 ~ 2.0µm  •  Pd 0.02 ~ 0.15µm •  Au 0.025 ~ 0.125µm
    		•
